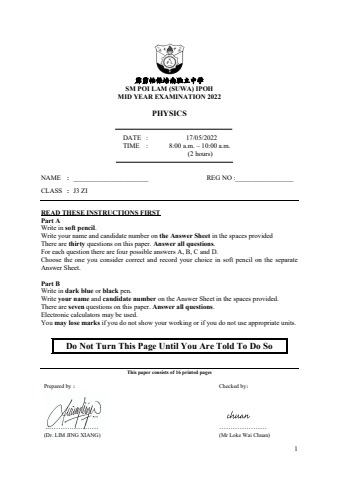

1 霹雳怡保培南独立中学 SM POI LAM (SUWA) IPOH MID YEAR EXAMINATION 2022 PHYSICS DATE : 17/05/2022 TIME : 8:00 a.m. – 10:00 a.m. (2 hours) NAME ：______________________ REG NO :_________________ CLASS ：J3 ZI READ THESE INSTRUCTIONS FIRST Part A Write in soft pencil. Write your name and candidate number on the Answer Sheet in the spaces provided There are thirty questions on this paper. Answer all questions. For each question there are four possible answers A, B, C and D. Choose the one you consider correct and record your choice in soft pencil on the separate Answer Sheet. Part B Write in dark blue or black pen. Write your name and candidate number on the Answer Sheet in the spaces provided. There are seven questions on this paper. Answer all questions. Electronic calculators may be used. You may lose marks if you do not show your working or if you do not use appropriate units. Do Not Turn This Page Until You Are Told To Do So This paper consists of 16 printed pages Prepared by ： ..……….………… (Dr. LIM JING XIANG) Checked by： ………………… (Mr Loke Wai Chuan)
2 Part A 1. A ruler is used to measure the length of a nail. What is the length of the nail? A. 1.3 cm B. 2.9 cm C. 5.2 cm D. 8.1 cm 2. A decorator wishes to calculate the area of a bathroom tile so that he can estimate the amount of adhesive that he needs to buy. What must he use? A. a ruler only B. a measuring cylinder only C. a measuring cylinder and a ruler only D. a measuring cylinder and a clock only 3. The diagram shows a thick-walled tube. The thickness of the wall is 3 mm. What is the internal diameter d of the tube? A. 2.8 cm B. 3.1 cm C. 3.4 cm D. 7.4 cm 4. The three balls shown are dropped from a bench. Which will reach the floor at the same time? A. lead and wood only B. aluminium and lead only C. aluminium and wood only D. aluminium, lead, and wood
3 5. A newton is a unit of force. Which quantity is measured in newtons? A. acceleration B. density C. mass D. weight 6. Which statement is correct? A. The mass of a bottle of water is measured in newtons. B. The weight of a bottle of water is one of the forces acting on it. C. The weight of a bottle of water and its mass are the same thing. D. The mass of a bottle of water at the North Pole is different from its mass at the Equator. 7. Two blocks X and Y are placed on a beam as shown. The beam balances on a pivot at its centre. What does this show about X and Y? A. They have the same mass and the same weight B. They have the same mass and the same density C. They have the same volume and the same weight D. They have the same volume and the same density 8. The masses of a measuring cylinder before and after pouring some liquid into it are shown in the diagram. What is the density of the liquid? A. 100 120 /3 B. 100 140 /3 C. 180 120 /3 D. 180 140 /3
4 9. A student pours liquid into a measuring cylinder. The student records the volume of the liquid from the scale on the measuring cylinder. He then puts the measuring cylinder containing the liquid on a balance and records the mass. What else needs to be measured before the density of the liquid can be calculated? A. the depth of the liquid in the measuring cylinder B. the mass of the empty measuring cylinder C. the temperature of the liquid in the measuring cylinder D. the volume of the empty measuring cylinder 10. Some water is poured into four tubes of different cross-sectional areas. Which tube contains the largest volume of water? 11. A metal drum has a mass of 200 kg when empty and 1000 kg when filled with 1.0 m3 of methylated spirit. What is the density of methylated spirit? A. 0.0050 kg/m3 B. 0.11 kg/m3 C. 800 kg/m3 D. 1000 kg/m3
5 12. A girl and a boy are pulling in opposite directions on a rope. Resultant force moves left. Which of the following shows the correct magnitude of resultant force? A. +350 B. -350 C. +50 D. -50 13. A car accelerates from traffic lights. The graph shows how the car’s speed changes with time. How far does the car travel before it reaches a steady speed? A. 10 m B. 20 m C. 100 m D. 200 m 14. The diagram shows four blocks, each made of glass of density 2.6 g/cm3 . The top of each block has an area of 1 cm2 . Which block has a mass of 13 g?
6 15. A cyclist is riding along a road when an animal runs in front of him. The graph shows the cyclist’s motion. He sees the animal at P, starts to brake at Q and stops at R. What is used to find the distance travelled after he applies the brakes? A. the area under line QR B. the area under line PQ C. the gradient of line PQ D. the gradient of line QR 16. A car travels along the route PQRST in 30 minutes. What is the average speed of the car? A. 10 /ℎ B. 20 /ℎ C. 30 /ℎ D. 60 /ℎ 17. Two stones of different weight fall at the same time from a table. Air resistance may be ignored. What will happen and why? what will happen why A. both stones hit the floor at the same time the acceleration of free fall is constant B. both stones hit the floor at the same time they fall at constant speed C. the heavier stone hits the floor first acceleration increases with weight D. the heavier stone hits the floor first speed increases with weight
7 18. The diagram shows a bird in flight. In which direction does the weight of the bird act? 19. A force acts on a moving rubber ball. How many of the following changes could happen to the ball because of the force? • a change in direction • a change in shape • a change in mass • a change in speed A. 1 B. 2 C. 3 D. 4 20. A light aircraft stands at rest on the ground. It stands on three wheels, one at the front and two further back. Which point could be its centre of mass? 21. Four students try to explain what is meant by acceleration. Which student makes a correct statement? A. It is related to the changing speed of an object B. It is the distance an object travels in one second C. It is the force acting on an object when it is near to the Earth D. It is the force acting on an object divided by the distance it travels in one second 22. A car travels 100 km. The highest speed of the car is 90 km/h, and the lowest speed is 30 km/h. The journey takes two hours. What is the average speed for the journey? A. 90 km/h B. 75 km/h C. 60 km/h D. 50 km/h
8 23. Which person is experiencing an acceleration? A. A skydiver falling at constant speed towards the Earth. B. A driver of a car that is braking to stop at traffic lights. C. A passenger in a train that is stationary in a railway station. D. A shopper in a large store ascending an escalator (moving stairs) at a uniform rate. 24. Three horizontal forces act on a car that is moving along a straight, level road. Which combination of forces would result in the car moving at constant speed? Air resistance Friction Driving force A. 100 N 500 N 400 N B. 400 N 500 N 100 N C. 400 N 100 N 500 N D. 500 N 100 N 400 N 25. The graph represents part of the journey of a car. What distance does the car travel during this part of the journey? A. 1200 m B. 600 m C. 300 m D. 150m 26. What is the gravitational force that the Earth exerts on an object? A. The weight of the object B. The volume of the object C. The mass of the object D. The density of the object
9 27. Which combination of forces produces a resultant force acting towards the right? 28. On which ball is a non-zero resultant force acting? 29. Below are four statements about the effects of forces on objects. Three of the statements are correct. Which statements is incorrect? A. A force can change the mass of an object. B. A force can change the speed of an object. C. A force can change the shape of an object. D. A force can change the length of an object. 30. Which statement about a moving object is correct? A. When an object is moving, there must be a resultant force acting on it. B. When an object is moving at a steady speed, the resultant force acting on it must equal zero. C. When an object is moving at a steady speed, the air resistance acting on it must equal zero. D. When an object is accelerating, the resultant force acting on it must equal zero.
10 Part B Answer all questions. 1. Complete the calculation below, write the answer in correct scientific notation and unit. a) 3 × 40 −1 =………………………………… b) 9.6 × 105 ÷ 120 =………………………………… c) 5.2 =………………………………… d) 1024 kg =………………………………… e) 50 × 40 2 × 5 =………………………………… (10 marks) 2. State the meaning of the following terms in physics: a) ………………………………………………………………………………………… ………………………………………………………………………………………… b) ………………………………………………………………………………………… ………………………………………………………………………………………… c) density ………………………………………………………………………………………… ………………………………………………………………………………………… d) force ………………………………………………………………………………………… ………………………………………………………………………………………… e) momentum ………………………………………………………………………………………… ………………………………………………………………………………………… (10 marks)
11 3. a) Draw and find the value of resultant force. (using graphical method/ parallelogram) i) 1 cm = 1 N Force = …………………… N (3 marks) ii) 1 cm = 1 N Force = …………………… N (3 marks) 1cm 1cm 1cm 1cm
12 b) Resolve the forces into x-component and y-component and find their value. i) 1 cm = 1 N = …………………… N = …………………… N (3 marks) ii) 1 cm = 1 N = …………………… N = …………………… N (3 marks) iii) 1 cm = 1 N = …………………… N = …………………… N (3 marks) 1cm 1cm 1cm 1cm 1cm 1cm
13 4. A drop of water shot from a hose vertically. Figure 1 is the graph of speed against time for the water drop. Figure 1 a) Describe the movement of the water drop in the first 4 s after leaving the hose. ………………………………………………………………………………………… ………………………………………………………………………………………… …………………………………………………………………………………(2 marks) b) Find the speed of water leaving the hose by referring to Figure 1. …………………………………………………………………………………(1 mark) c) Find the time when the speed of the water is minimum. …………………………………………………………………………………(1 mark ) d) By referring to Figure 1, calculate the acceleration of the water drop as it falls back towards the ground. Show your working. Acceleration = ……………ms-2 (3 marks) e) Calculate the greatest distance above the ground reached by the water drop. Distance = ……………m (3 marks)
14 5. A mass of 3.0 kg accelerates at 2.0 ms-2 in a straight line. a) State why the velocity and the acceleration are both described as vector quantities. ………………………………………………………………………………………… …………………………………………………………………………………(1 mark ) b) Calculate the force required to accelerate the mass. Force = …………… N (2 marks) c) If a force of 15 N is applied to the same mass. What is the value of acceleration? Acceleration = ……………ms-2 (2 marks)
15 6. Fig. 2 shows the vertical forces on a rocket. Figure 2 a) Calculate the resultant force on the rocket. Resultant force = ……………………… Direction = ……………………… (3 mark ) b) Figure 3 shows the speed and direction of motion of an object at a point in time. Figure 3 The resultant force on the object is zero for 10 seconds. Deduce the speed and direction of motion after 5 seconds. Indicate the speed and direction of the object by drawing a labelled arrow next to the object in the figure below. (1 mark)
16 7. The engine of an unpowered toy train is rolling at a constant speed on a level track, as shown in Figure 4. The engine collides with a stationary toy truck and joins with it. Figure 4 Before the collision, the toy engine is travelling at 0.32 m/s. The mass of the engine is 0.50 kg. a) State the Principle of conservation of momentum. ………………………………………………………………………………………… …………………………………………………………………………………(1 mark ) b) Calculate the momentum of the toy engine before the collision. Momentum = ………………………… (2 marks) c) The mass of the truck is 0.30 kg. Using the principle of conservation of momentum, calculate the speed of the joined engine and truck immediately after the collision. Speed = ……………… ms-1 (3 marks)
